IP65 Protection Die Cast Aluminum LED Screen Energy Saving Outdoor LED Video Wall
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | Charming |
| Sertifikasi: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Nomor model: | P6.66 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 2 buah |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | Kotak Karton, Kotak Kayu, Kotak Penerbangan |
| Waktu pengiriman: | 30 hari kerja setelah pembayaran |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, Paypal, tunai |
| Menyediakan kemampuan: | 500 BUAH per minggu |
|
Informasi Detail |
Deskripsi Produk

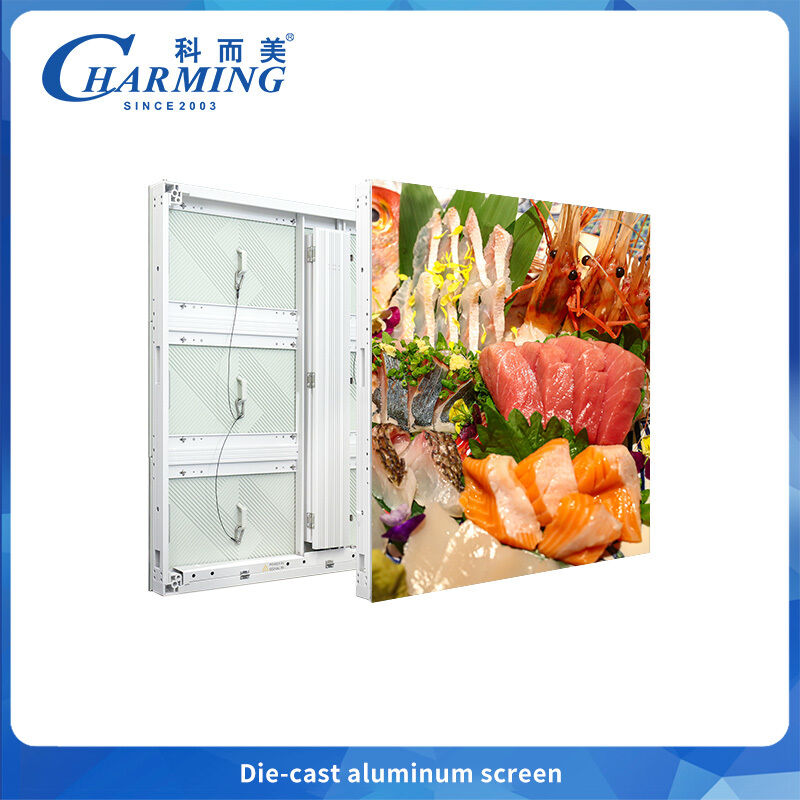

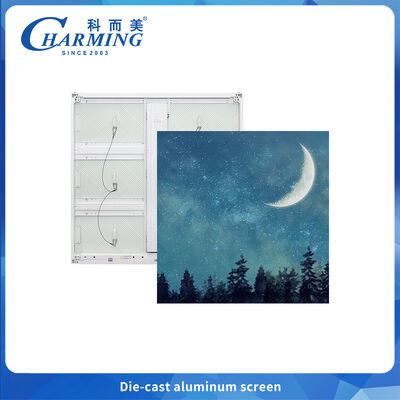

IP65 Protection Outdoor Die Cast Aluminum LED Screen
Commercial plaza naked installation free of air conditioning energy saving choice
Product Features
- High Protection & Flexible Splicing
- Lightweight Design & Full Maintenance
- High Performance & Energy Saving
- High Stability & Security
Product Specifications
| Parameter | Specification |
|---|---|
| Cabinet Size | 960*960mm |
| Pixel Pitch | 6.66mm |
| Pixel Density | 22500 dots/m² |
| LED Size | SMD2727 |
| Scan Type | 1/2 Scan |
| Gray Scale | 14-16 bit |
| Refresh Rate | 1920/7680Hz |
| Screen Brightness | ≥6500 CD/m² |
| Optimal Viewing Distance | ≥8M |
| Screen Resolution | 74*28 |
| Module Size | 480*320mm |
| Viewing Angle | 120° |
| Cabinet Max Power | 900W |
| Cabinet Weight | 25kg |
| IP Grade | IP65 |
| Operating Temperature | -20~+60℃ |
| Operating Humidity | 10%~90%RH |
Installation Details
- Cut the box to required hole size and shape, align and fix the box with quick locks
- Distinguish power lines and signal lines, insert them into corresponding positions in the cabinet
- Connect main signal line and main power line to computer and controller, debug the screen for normal use
