CM Series Indoor LED Screen with Oxidation-Resistant Die-Cast Aluminum & Direct Curved Combination 14-16 Bit Grey Level
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | Charming |
| Sertifikasi: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Nomor model: | P3.91 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 2 buah |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | Kotak Karton, Kotak Kayu, Kotak Penerbangan |
| Waktu pengiriman: | 10 Hari Kerja setelah Pembayaran |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, Paypal, tunai |
| Menyediakan kemampuan: | 500 pcs per minggu |
|
Informasi Detail |
|||
| Level abu -abu: | 14-16 bit | Suhu kerja: | -20~40°C |
|---|---|---|---|
| Kelembaban kerja: | 10%～90%RH | Kecerahan (CD/m2): | 600cd/㎡ |
| Materi Kabinet: | Paduan Aluminium | Tegangan kerja: | AC 110V/220V, ± 15% |
| Sudut Pandang: | 120° | Rentang Hidup: | Rentang Hidup |
Deskripsi Produk
CM Series Indoor Screen – Oxidation‑Resistant Die‑Cast Aluminum & Direct Curved Combination Without Changing Locks
Product Overview
CM Series Indoor Screen - Oxidation‑Resistant Die‑Cast Aluminum & Direct Curved Combination Without Changing Locks
Product Features
- Aluminum alloy cabinet
- Precise splicing
- Ultra‑thin thickness
- Lightweight design
- Truss connection keyhole
- Ergonomic construction
- Flexible assembly
- Corner & curved cabinet ready
- Die‑cast aluminum process
Technical Specifications
| Type Number | P2.604 | P2.976 | P3.91 |
|---|---|---|---|
| Dimension (MM) | 500x500x79MM | ||
| Max. Power (W) | 100W | ||
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Refresh Rate (Hz) | 7600Hz | 7680Hz | 1920/7680Hz |
| Pixel Pitch (MM) | 2.604 | 2.976 | 3.91 |
| Scan Mode | 1/32 Scan | 1/21 Scan | 1/16 Scan |
| Brightness (CD/m²) | ≥600 CD/㎡ | ||
| Viewing Angle | 120° | ||

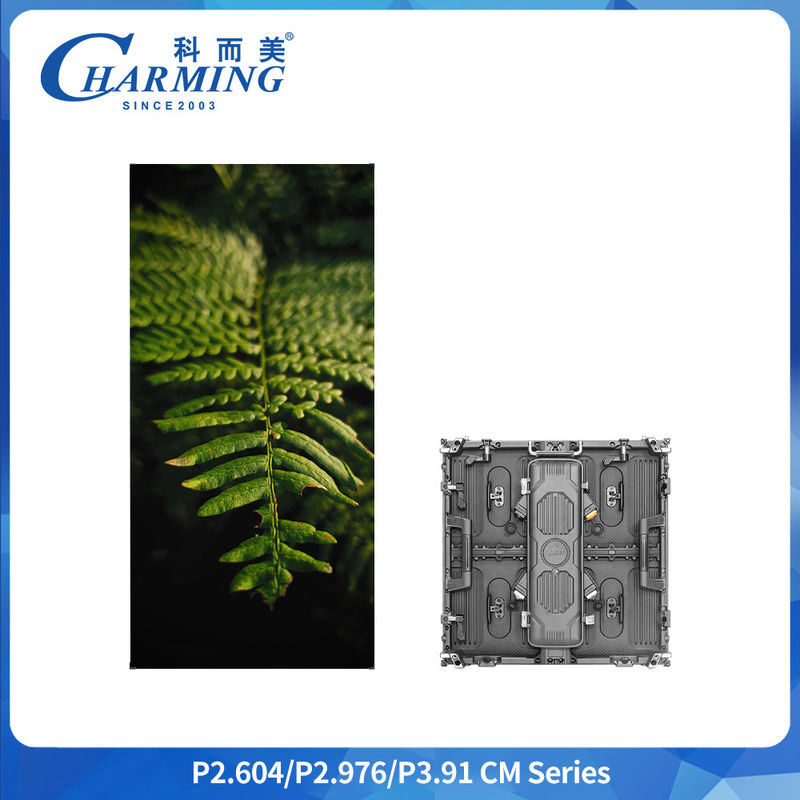

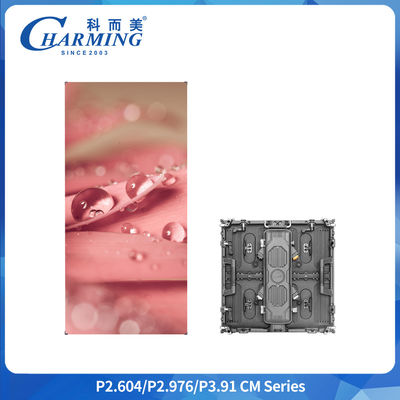

Product Images
Packaging Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
Company Advantages
Ingin Tahu lebih detail tentang produk ini
