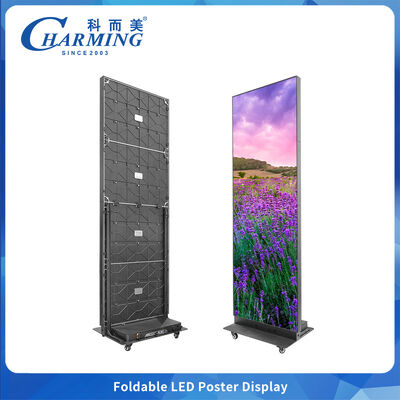

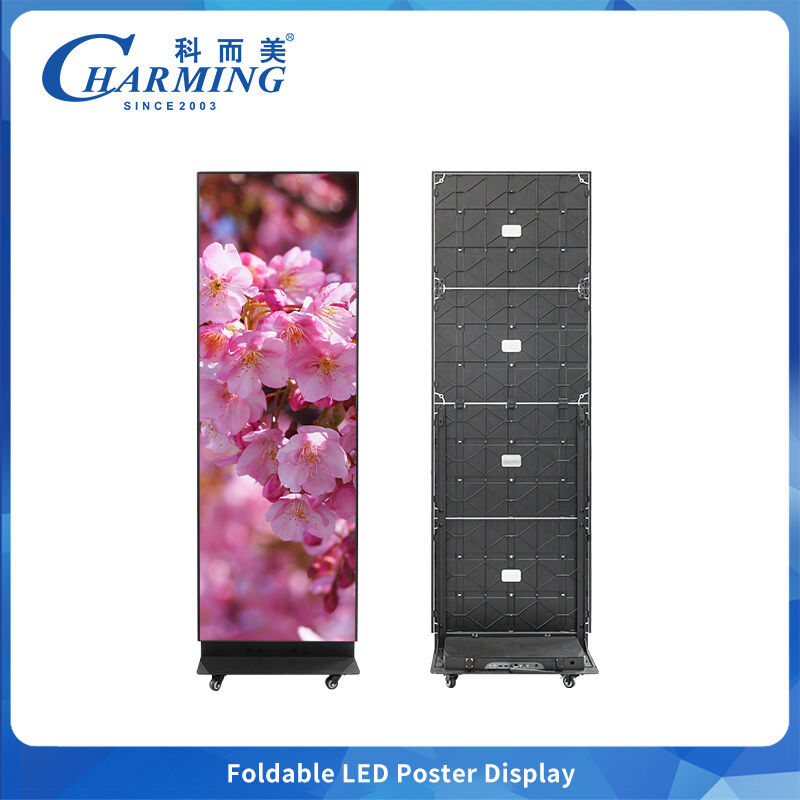

High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | Charming |
| Sertifikasi: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Nomor model: | P1.86 P2 P2.5 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 2 buah |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | Kotak Karton, Kotak Kayu, Kotak Penerbangan |
| Waktu pengiriman: | 10 Hari Kerja setelah Pembayaran |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, Paypal, tunai |
| Menyediakan kemampuan: | 500 pcs per minggu |
|
Informasi Detail |
|||
| Sudut Pandang: | 140° | Tingkat Perlindungan: | IP43 |
|---|---|---|---|
| Bahan Kabelnet: | Paduan Aluminium | Metode pemeliharaan: | Pemeliharaan Depan |
| Level abu -abu: | 14-16 bit | Suhu Kerja: | -20~40°C |
| Kelembaban Kerja: | Kelembapan Udara 10% - 65% | Tegangan kerja: | AC220V,50/60HZ |
| Menyoroti: | foldable LED video wall display,aluminum alloy LED display,mobile control video wall |
||
Deskripsi Produk
High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
| Type Number | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension (mm) | 657*2075*490mm | ||
| Pixel Pitch (mm) | 1.86mm | 2mm | 2.5mm |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Pixel Density (dot/m) | 288,906 | 202,500 | 160,000 |
| Max. Power (W) | 600W | ||
| Cabinet Weight (kg) | 48.8kg | ||
| Refresh Rate (Hz) | 7680Hz | ||
| Brightness (CD/m²) | 600 | 600 | 800 |
Product Features
- High Refresh Rate - Delivers smooth, flicker-free video playback
- GOB Technology - Protection for enhanced durability and reliability
- Intelligent Mobile Control - Easy operation and management via mobile devices
Other detail:
Installation Process
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the cabinet
- Identify power cables and signal cables, then insert them into the corresponding cabinet connections
- Connect the main signal cable and main power cable to the computer and controller, then complete screen setup after debugging
Packaging Options
We offer multiple packaging solutions including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transportation.
